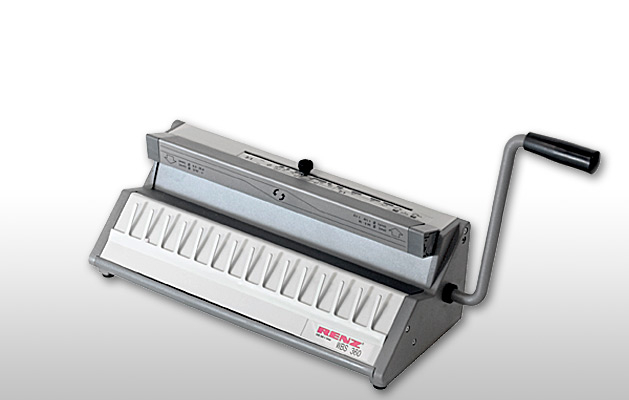

Standalone wire manual closing machine for closing RENZ RING WIRE® elements from ø 5,5 mm - 38 mm (3/16" - 1 1/2") independent of pitch, working width 360 mm.

Maximum:
Width

Width
360 mm

Thickness

Thickness
34 mm

Output:
Max. bound books per hour

Max. bound books per hour
250

Max. bound calendars per hour

Max. bound calendars per hour
200

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

EAN 4029126403850
Article no. 38360033100
Pitch 4:1, 3:1 & 2:1
Binding thickness 1 - 34 mm
Binding element Ø 6.9 - 38 mm
1/4" - 1 1/2"
Min. binding width 10 mm
Max. binding width 360 mm
Min. unbound edge 65 mm
Max. unbound edge 600 mm
Binding operation Manual
No. of books output per hr 250
No. of calendars output per hr 200
Calendar hangers Loose
Machine dimensions L x W x H 560 x 150 x 320 mm
Machine weight 8.5 kg
Machine packing dimensions L x W x H 620 x 480 x 345 mm
Machine weight with packing 10.5 kg

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.
