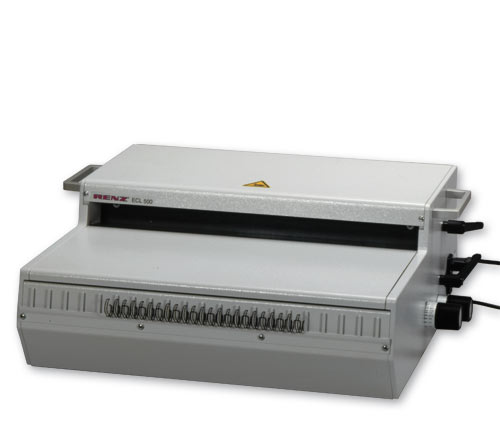

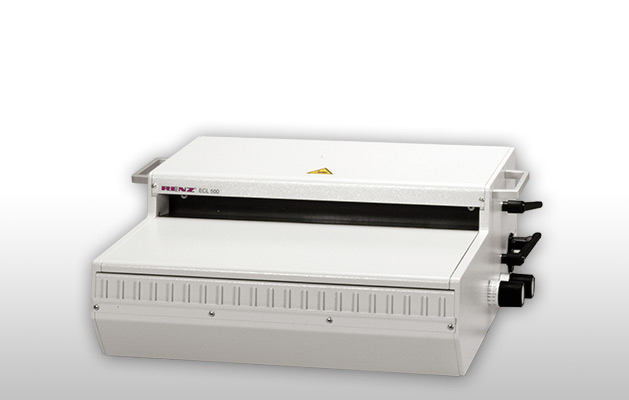

Electric RENZ RING WIRE® closing machines, no effort required. A user-friendly solution to wire bind all your products quickly and easily.

  • Quick size adjustment for fast wire diameter set up
  • Integrated ring wire hanging device for comfortable working
  • Binds up to 340 sheets
  • Fast and consistent bind cycle from the first to the last document every time
  • Binds the largest diameter 1 1/2“ (38 mm) RENZ RING WIRE®
  • Automatic protection safety switch
  • Parallel adjustment guarantees a perfect bind every time
Maximum:
Width

Width
500 mm

Bind up to

Bind up to
34 mm

Output:
Max. bound books per hour

Max. bound books per hour
400

Max. bound calendars per hour

Max. bound calendars per hour
250

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator.

Fast and comfortable wire diameter changes adjusted by a simple hand wheel guarantee the perfect setup.

Automatic safety switch will always cut off the machine preventing any injury to a worker. The machine can be easily reset by turning the power switch off and on.

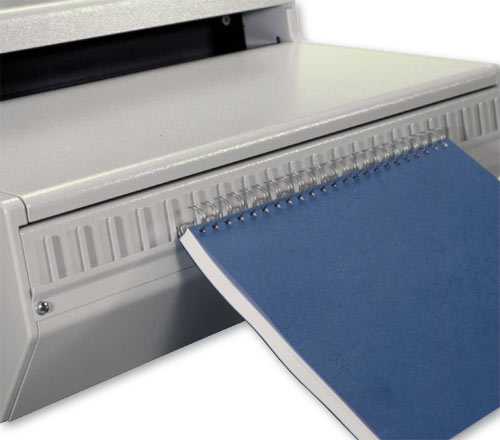

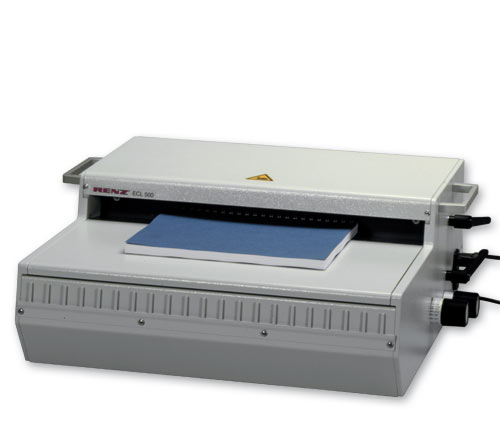

Pre-punched paper is loaded onto the integrated easy-loading wire holder.

Pitch 4:1, 3:1 & 2:1
Binding thickness 1 - 34 mm
Binding element Ø 6.9 - 38 mm
1/4" - 1 1/2"
Min. binding width 10 mm
Max. binding width 500 mm
Min. unbound edge 65 mm
Max. unbound edge 600 mm
Binding operation Electric
No. of books output per hr 400
No. of calendars output per hr 250
Time required for diameter change 20 s
Format change without diameter -
Calendar hangers Loose
Machine dimensions L x W x H 530 x 650 x 230 mm
Machine weight 46 kg
Machine packing dimensions L x W x H 630 x 780 x 340 mm
Machine weight with packing 52 kg
Power requirement 230/250V / 50Hz / 250W
115/200V / 60Hz / 250W

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm. All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator.
