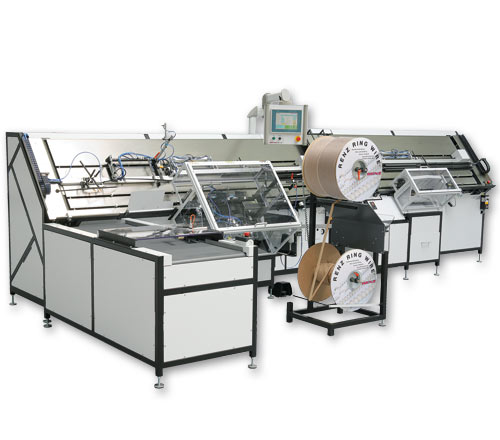

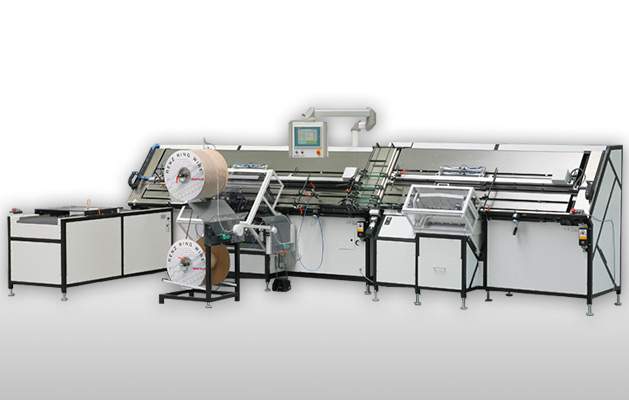

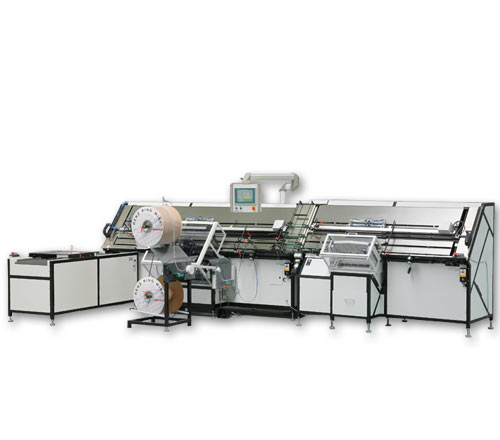

Industrial, high-speed, fully-automatic punching and RENZ RING WIRE® binding line for books, calendars and skip binding.

  • Punching dies for all ring wire, calendars & skip binding
  • Versatile calendar production line capable of producing a wide range of formats
  • Simple & fast on-screen machine setup
  • Touch screen assisted setup process
  • QSA (Quick Size Adjustment) for high flexibility of different paper formats
  • Integrated cover page lifting device
  • Optional extra:
    • Job memory, storage capacity of up to 50 jobs
    • KAS calendar hanger systems
Maximum:
Width

Width
500 mm

Punch up to

Punch up to
4.5 mm

Bind up to

Bind up to
15 mm

Output:
Max. bound products per hour

Max. bound products per hour
2,000

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. Dependent on the machine type and the configuration.

Operator-friendly, multi-language, touch screen control panel allows format changes to be made quickly and easily. The job memory function for the automatic storage of product settings is available as an optional extra.

In-feed triggered by a magic eye. The delivery system accurately feeds the product into the punching station.

Split two-part dies with thumb cut allow bock block punching as well as calendar punching without the need to invest in a second die. QSA (Quick Size Adjustment) technology allows the quick cancellation of punching pins without having to remove the die.

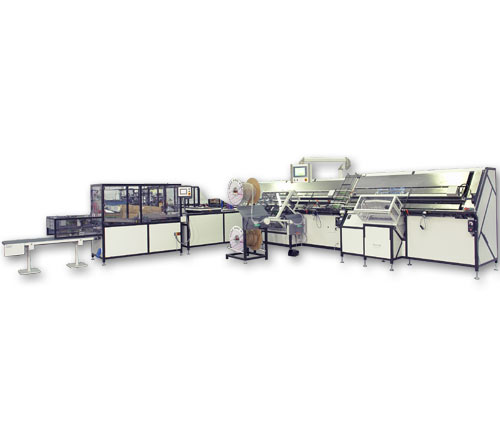

Optional extra: KL 500 cross stacking unit stacks the product ready to be packed.

Closing bar sets are required for each individual wire diameter. The Renz closing bars guarantee a perfectly round close every time.

Optional extra: NH 4.5 mm nail hole punch.

Optional extra: KAS calendar hanger systems are unique in that they take straight wire and pre-form the hanger into a standard or euro hanger profile. For Inline 500: KAS 300 IL, 80 - 300 mm straight wire.

Optional extra: DBW 500 conveyor flips the back cover into position.

Cover sheet turner can lift the back cover off the product.

Mechanical cycles per hour 2,500
Min. punching width 70 mm (1)
Max. punching width 500 mm
Min. unpunched length 135 mm (1)
Max. unpunched length 700 mm (1)
Max. punching thickness 4.5 mm
Punching operation Automatic
Pitch 3:1, 2:1 ring wire and calendar
Selectable punch pins (QSA) Yes
Binding thickness 15 mm
Binding element Ø 5.5 - 19 mm
3/16“ - 3/4“
Min. binding width 70 mm
Max. binding width 500 mm
Min. unbound edge 135 mm (1)
Max. unbound edge 700 mm (1)
Binding operation Automatic
Time required for diameter change 20 - 30 min
Format change without diameter 5 min
Calendar hangers Optional
Machine dimensions L x W x H 5,400 x 2,500 x 1,600 mm (3)
Machine weight 2,350 kg (2)
Machine packing dimensions L x W x H Dependent on the configuration
Machine weight with packing Dependent on the configuration
Compressed air 7.5 bar / 450 - 500 l/min
Power requirement 3/N/PE~400/230V 50Hz / 7kW
3/PE~200/115V 60Hz / 7kW

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm. All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. Dependent on the machine type and the configuration. (1)Special adaptor kits required for other formats. (2)Weight without dies and closing bars. (3) Dependent on the machine type and the configuration.
