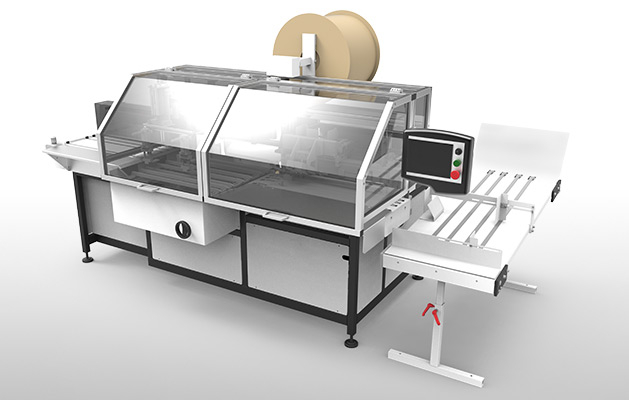

Automatic punching and binding machine for books and calendars.

  • Up to 75% increase in productivity compared to semi-automatic machines
  • Touch screen for easy format changes
  • QSA (Quick Size Adjustment) technology to reduce set-up times
  • Highest flexibility – easy relocation
  • Upgradable with various modules – adaptation to customer demands
  • Connection to different packing machines
Maximum:
Width

Width
500 mm

Punch up to

Punch up to
4.5 mm

Bind up to

Bind up to
20 mm

Output:
Max. bound products per hour

Max. bound products per hour
1,000

Technische Änderungen vorbehalten.

Menu-driven touch-screen control panel

Combined transport and feeding belts

Split two-part dies for punching books and calendars with QSA-technology (Quick Size Adjustment) reducing set-up times.

positively locking closing tool for perfect binding results

Collection station for products with multiple layers

Transport pins for reliable paper transport

Transfer station with transport pins

Transport pins binding station

Station for forming and feeding calendar hangers

Shingle belt

Spool de-winding with integrated paper separation re-winding

Mechanical cycles per hour 1,000
Max. punching width
Max. punching thickness 4.5 mm
Punching operation Automatic
Pitch 3:1, 2:1 wire comb binding & calendar
Selectable punch pins (QSA) Yes
Binding thickness 20 mm
Min. binding width 125 mm
Max. binding width 500 mm
Min. unbound edge 145 mm (automatic operation)
100 mm (semi-automatic operation)
Max. unbound edge 500 mm
Binding operation Automatic
Time required for diameter change approx. 15 min
Format change without diameter approx. 5 min
Calendar hangers Optional
Machine dimensions L x W x H 3200 x 2000 x 1500 mm
3200 x 2000 x 2000 mm (with open cover)
Machine weight 590 kg
Compressed air 6 bar / 350 - 400 l/min
Power requirement 3~/N/PE 400/230V 50Hz / 2.0kW

Technische Änderungen vorbehalten.
