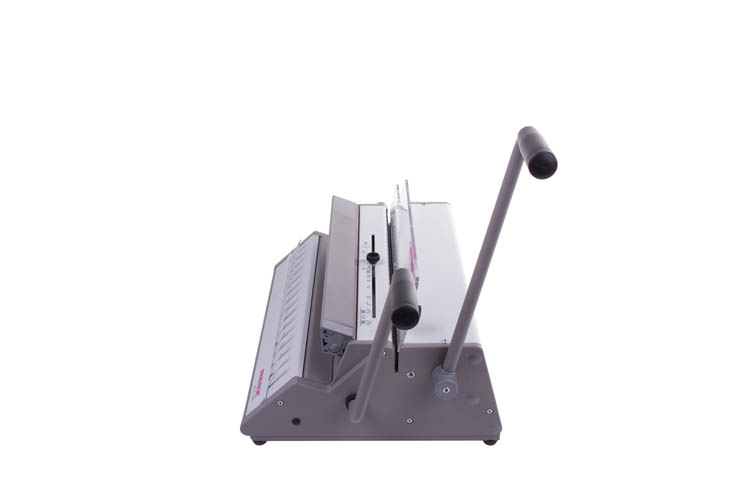

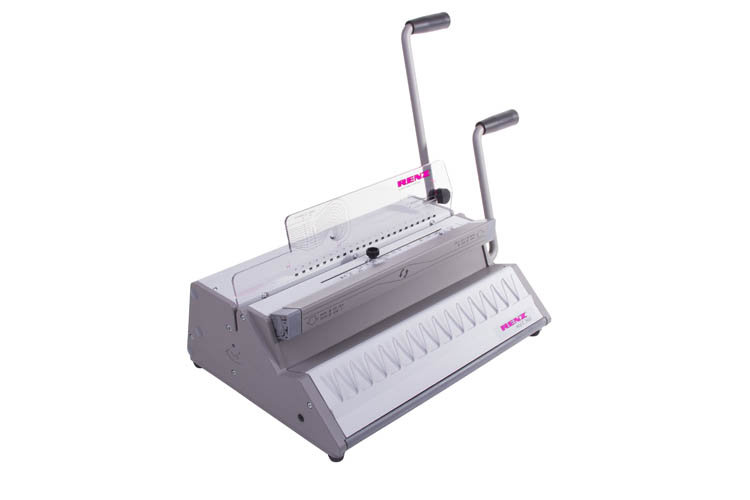

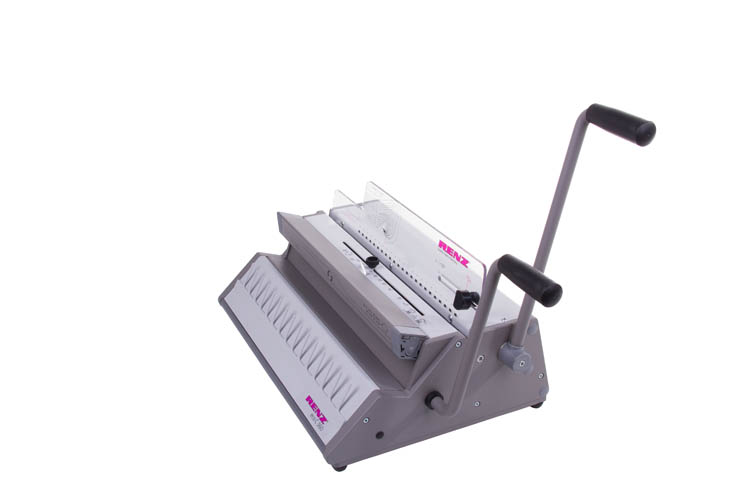

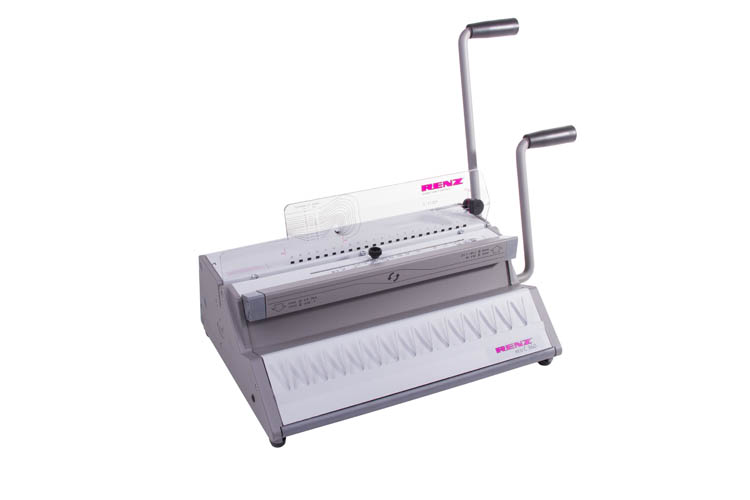

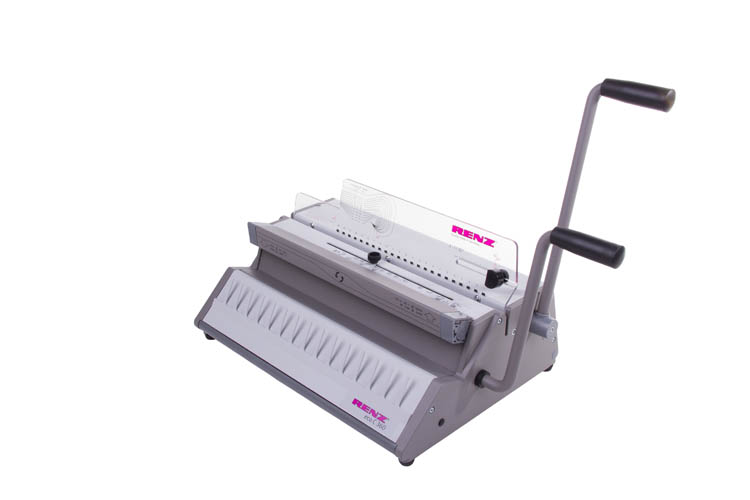

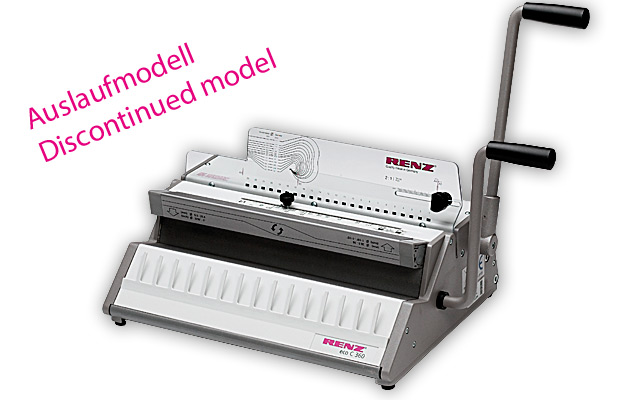

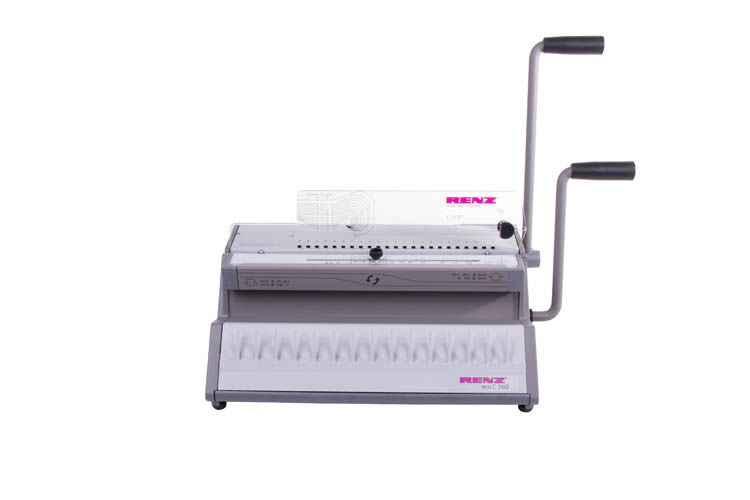

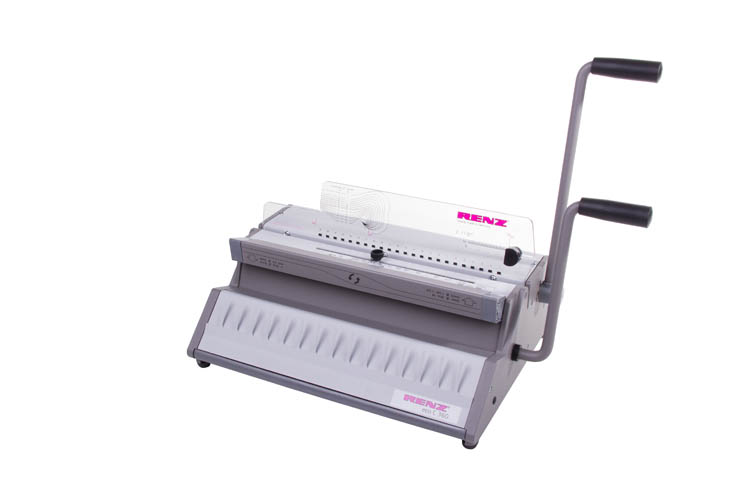

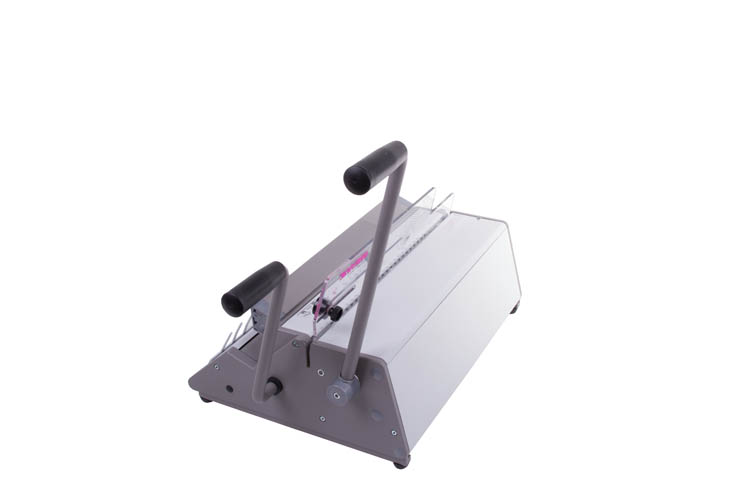

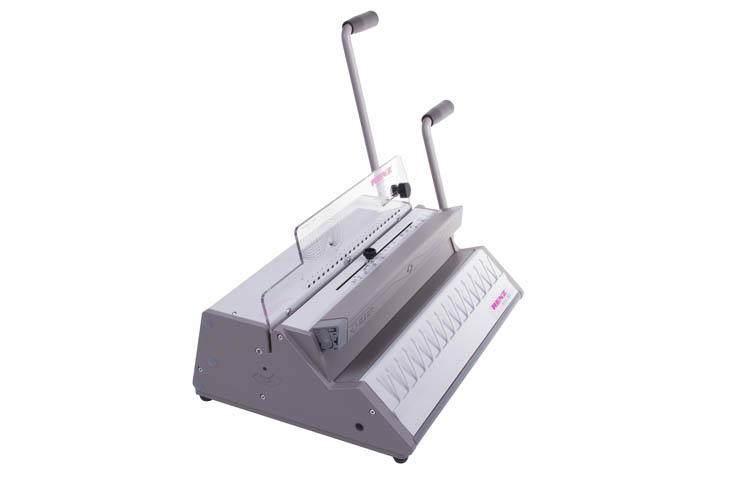

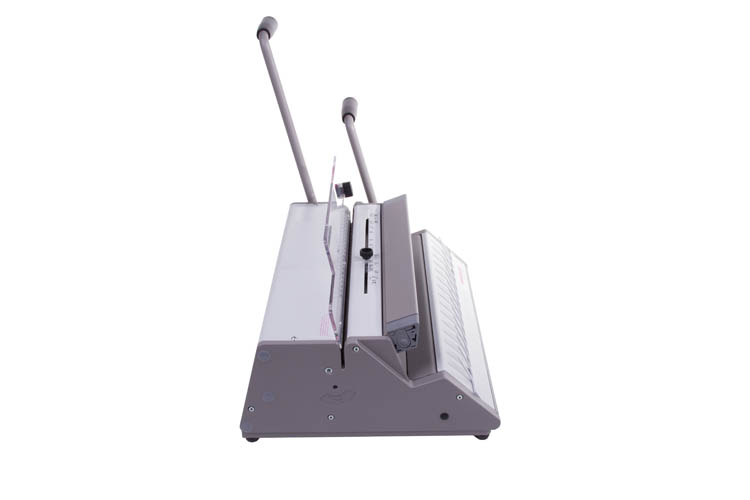

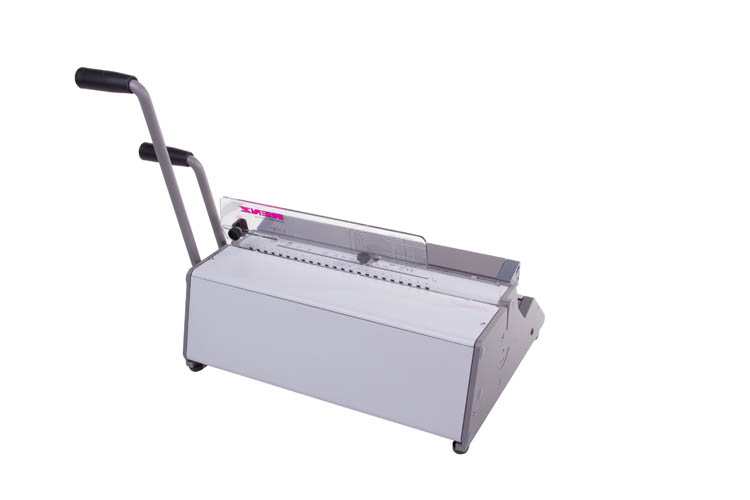

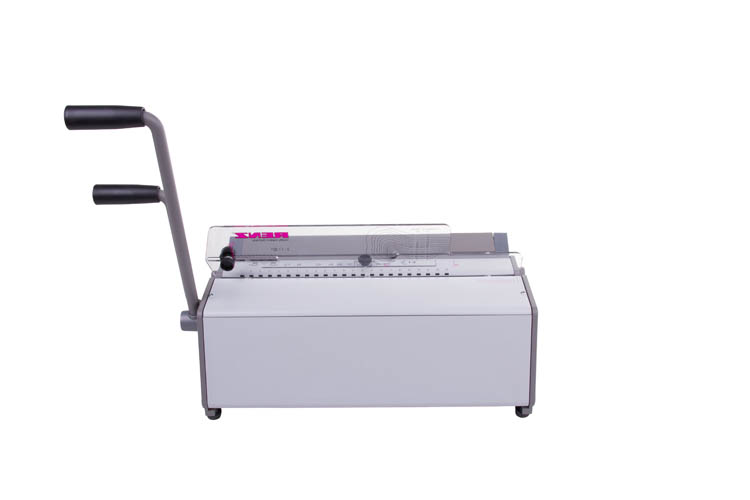

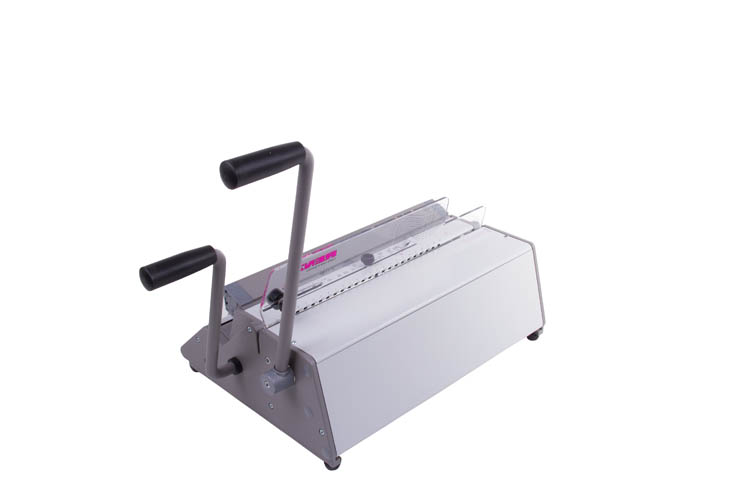

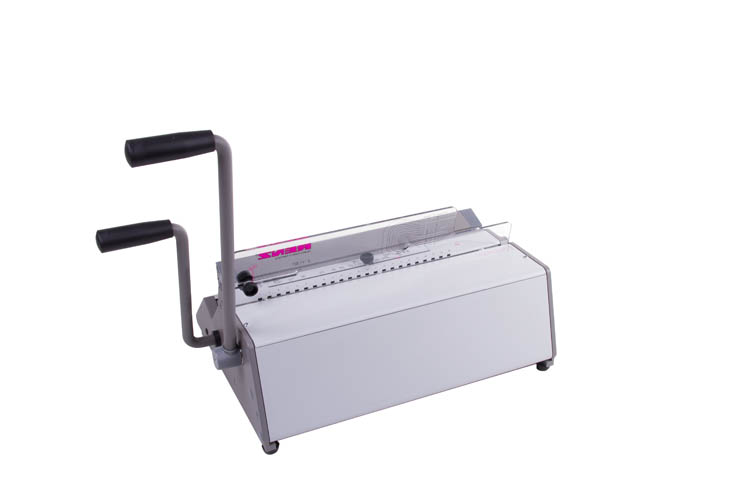

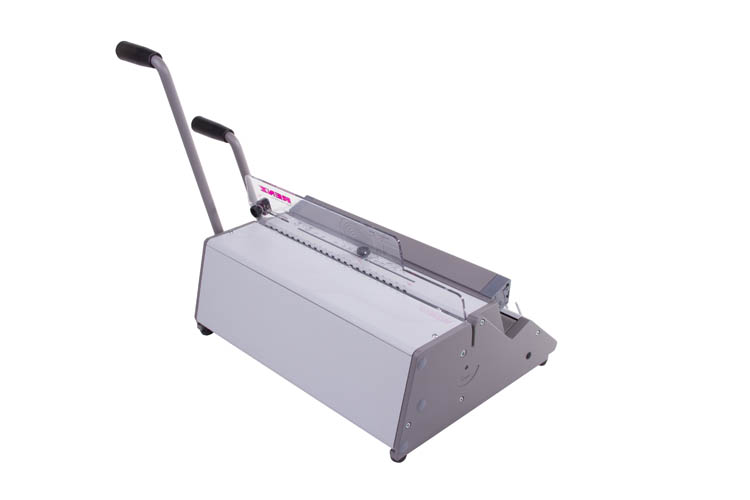

2:1 pitch entry-level office manual punching and binding machine designed for regular use in a small to medium sized office.

  • Binds up to 340 sheets
  • Closure control guarantees easy ring wire closure for perfect presentations every time
  • Special hardened punch pins for long lasting life Staggered punching pins for better punching
  • For paper formats: A5, A4
  • Adjustable side lay for perfect punching registration
  • Easy to empty sliding waste tray
  • Measures the document or ring wire size
  • Parallel adjustment guarantees a perfect bind every time
  • Heavy duty construction & compact design
Maximum:
Width

Width
300 mm

Punch up to

Punch up to
2.5 mm

Bind up to

Bind up to
34 mm

Output:
Max. punched sheets per hour

Max. punched sheets per hour
12,000

Max. bound products per hour

Max. bound products per hour
200

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 1.5 - 2.0 mm.

Vertical punching makes it quick and easy to punch correctly every time.

Binds up to 340 sheets. The closure control guarantees quick and exact wire closing.

EAN 4029126365059
Article no. 27210000
Punching capacity sheets per hr 12,000
Min. punching width 10 mm
Max. punching width 300 mm
Min. unpunched length 50 mm
Max. unpunched length 500 mm
Max. punching thickness 2.5 mm
Punching operation Manual
Punch dies available Oblong 5.5 x 3.5 mm
Pitch 2:1
Selectable punch pins (QSA) No
Variable margin depth No
Binding thickness 1 - 34 mm
Binding element Ø 6.9 - 38 mm
1/4" - 1 1/2"
Min. binding width 10 mm
Max. binding width 360 mm
Binding operation Manual
No. of books output per hr 200
Machine dimensions L x W x H 330 x 560 x 180 mm
Machine weight 13.5 kg
Machine packing dimensions L x W x H 620 x 480 x 345 mm
Machine weight with packing 16 kg
Power requirement -

(1) For best punching results we recommend a paper thickness of 1.5 - 2.0 mm. All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator.

Technical modifications may be made without notice.

1 mm = 10 sheets of paper. based on 70/80 gsm.
