Available in the first quarter of 2016

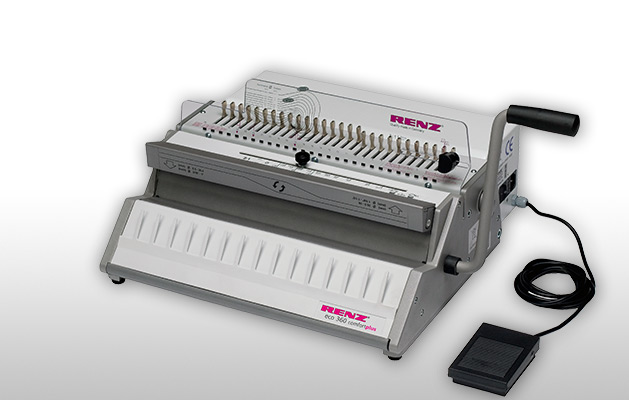

comfortplus stands for a considerably improved punching speed compared with our current comfort series. The higher speed is achieved using a new motor which is twice as powerful. The new comfortplus machines replace the current models SRW 360 comfort, eco 360 comfort, ERW and eco E.

2:1 pitch electric punching and manual binding machine designed for regular use in a small to medium sized office. It takes the manual labour out of punching.

  • Binds up to 340 sheets
  • Closure control guarantees easy ring wire closure for perfect presentations every time
  • Gauge to alter margin for a stronger bind
  • Special hardened punch pins for long lasting life
  • Staggered punching pins for better punching
  • QSA (Quick Size Adjustment) for high flexibility of different paper formats: A5, A4 and A3
  • Adjustable side lay for perfect punching registration
  • Easy to empty sliding waste tray
  • Measures the document or ring wire size
  • Parallel adjustment guarantees a perfect bind every time
  • Heavy duty construction & compact design
Maximum:
Width:

Width:
360 mm

Punch up to

Punch up to
2.5 mm

Bind up to

Bind up to
34 mm

Output:
Max. punched sheets per hour

Max. punched sheets per hour
14,000

Max. bound products per hour

Max. bound products per hour
220

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 1.5 - 2.0 mm.

Vertical punching makes it quick and easy to punch correctly every time on both the manual and electric versions of the eco 2:1 range.

QSA (Quick Size Adjustment) technology means that punching pins can be cancelled and paper formats can be changed quickly and easily.

Depth gauge feature allows the operator to adjust the punched hole margin from 2 mm to 4,5 mm. This adds strength to the bound edge.

Binds up to 340 sheets. The closure control guarantees quick and exact wire closing.

EAN 4029126511364
Article no. 27210300
Punching capacity sheets per hr 16,000
Min. punching width 10 mm
Max. punching width 360 mm
Min. unpunched length 50 mm
Max. unpunched length 500 mm
Max. punching thickness 2.5 mm
Punching operation Electric
Punch dies available Oblong 5.5 x 3.5 mm
Pitch 2:1
Selectable punch pins (QSA) Yes
Variable margin depth Yes
Binding thickness 1 - 34 mm
Binding element Ø 6.9 - 38 mm
1/4" - 1 1/2"
Min. binding width 10 mm
Max. binding width 360 mm
Binding operation Manual
No. of books output per hr 250
No. of calendars output per hr 180
Machine dimensions L x W x H 430 x 560 x 180 mm
Machine weight 26.0 kg
Machine packing dimensions L x W x H 620 x 480 x 345 mm
Machine weight with packing 28.5 kg
Power requirement 230/250V / 50Hz / 180W
115/200V / 60Hz / 180W

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 1.5 - 2.0 mm.
