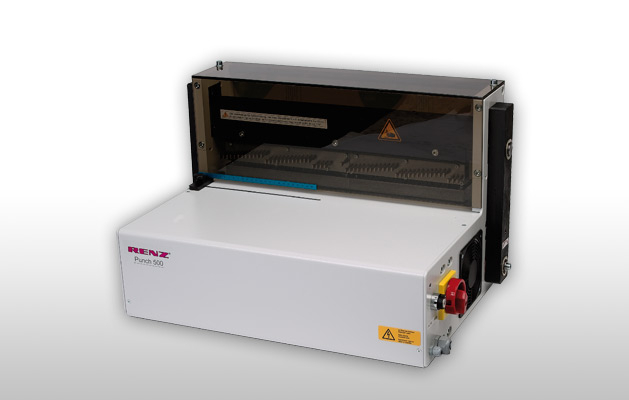

Heavy-duty, professional punch machine. Very versatile machine for all types of book and calendar punching production.

  • Punching dies for all types of ring wire, plastic comb, coil and calendars
  • Bespoke professional dies for the Punch 500 ES or Punch 500 HD are available on request
  • Fast die changes
  • 2-part split dies for book and calendar work
  • QSA (Quick Size Adjustment) for high flexibility of different paper formats(1)
  • Punch a wide range of mixed stocks
  • Horizontal paper feeding
Maximum:
Width

Width
500 mm

Punch up to <sup>(1)</sup>

Punch up to (1)
4.0 mm

Output:
Mechanical cycles per hour

Mechanical cycles per hour
3,000

Max. punched sheets per hour

Max. punched sheets per hour
36.000

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator.

(1) Dependent on the die type.

Standard punching dies(A) with a working width of 500 mm fit the Punch 500 series. Professional punching dies(B) can be made with standard or bespoke punch patterns. Adjustable back stop is also possible. These dies only fit the Punch 500 ES and Punch 500 HD models.

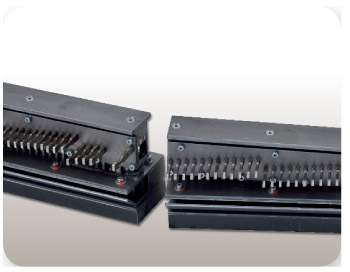

Split two-part dies with thumb cut allow bock block punching as well as calendar punching without the need to invest in a second die. QSA (Quick Size Adjustment) technology allows the quick cancellation of punching pins without having to remove the die.(1)

Punch 500 ES and Punch 500 HD models come equipped with eccentric shafts. This feature allows for the installation of all Standard Punch 500 dies and Professional Punch 500 dies, which can be re-sharpened a few times.

Micro switch is a sensor that will automatically trigger the punch when the paper is inserted into the die slot. This is available on the Punch 500 ES and Punch 500 HD models for a more efficient workflow.

Logistic table: Optional stand and logistics tables for improving product workflow and output. Punch 500 & Punch 500 ES requires the stand (C) and logistic tables (D) Punch 500 HD requires logistic tables (D)

Mechanical cycles per hour 3,000
Min. punching width 60 mm with foot pedal
105 mm with micro switch
Max. punching width 500 mm
Min. unpunched length 70 mm with foot pedal
110 mm with micro switch
Max. unpunched length 800 mm
Max. punching thickness 4 mm (1)

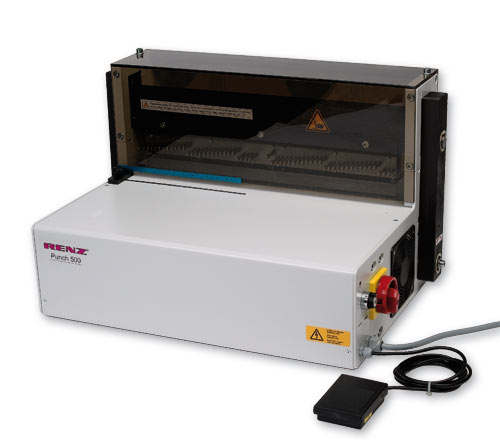

Punching operation Micro switch or Foot pedal
Punch dies available 3:1, 2:1 ring wire, calendar, coil, plastic comb
Die type Standard, Professional
Selectable punch pins (QSA) Standard dies: Yes
Professional dies: Optional
Bespoke dies Standard dies: No
Professional dies: Yes
Variable margin depth Standard dies: No
Professional dies: Optional
Die changeover time 3 min
Machine dimensions L x W x H 670 x 450 x 400 mm
Machine weight 112 kg (2)
Machine packing dimensions L x W x H 900 x 670 x 680 mm
Machine weight with packing 174 kg (2)
Power requirement 3/N/PE~400/230V 50Hz / 3,5kW
3/PE~200/115V 60Hz / 3,5kW

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm. All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator.

(1) Dependent on the die type.
(2) Weight excluding the die.
