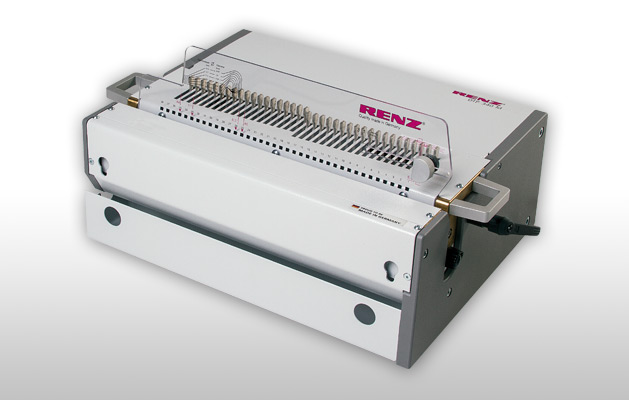

Reliable, heavy-duty, desktop punching machine. The modular design makes it very versatile for all types of book and calendar production.

  • Punching dies for all types of ring wire, plastic comb, coil and calendars.
  • Punch a wide range of mixed stocks
  • Fast die changes
  • QSA (Quick Size Adjustment) for high flexibility of different paper formats: A5, A4 and A3(1)
  • Vertical paper feeding for precise punching
  • Compact simple design, one machine can punch and bind all jobs when using Renz MBS binding modules
Maximum:
Width

Width
340 mm

Punch up to <sup>(1)</sup>

Punch up to (1)
3.5 mm

Output:
Mechanical cycles per hour

Mechanical cycles per hour
1,200

Max. punched sheets per hour

Max. punched sheets per hour
20,000

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 2.0 - 2.5 mm.

(1) Dependent on the die type.

Strong and reliable German engineered punching dies with a working width of 340 mm. Available in a wide range of different punch patterns.

Simple vertical loading system for quick and effortless die changes.

QSA (Quick Size Adjustment) technology allows the quick cancellation of punching pins without the need to remove the die.

The depth gauge feature allows the operator to adjust the punched hole margin from 2 mm to 4,5 mm(1). This adds strength to the bound edge.

Large waste tray which can be easily removed allowing emptying from the front or the side of the machine.

Upgrade your DTP 340 M punch with RENZ MBS binding modules to make a workstation. Illustrated is the DTP 340 M and WBS 360 for wire comb binding.

Upgrade your DTP 340 M punch with RENZ MBS binding modules to make a workstation. Illustrated is the DTP 340 M and PBS 340 for plastic comb binding.

Upgrade your DTP 340 M punch with RENZ MBS binding modules to make a workstation. Illustrated is the DTP 340 M and CBS 340 for plastic coil binding.

EAN 4029126231453
Article no. 363400100
Mechanical cycles per hour 1,200
Min. punching width 10 mm
Max. punching width 340 mm
Min. unpunched length 40 mm
Max. unpunched length 800 mm
Max. punching thickness 3.5 mm (1)
Punching operation Foot pedal
Punch dies available 3:1, 2:1 ring wire, calendar, coil, plastic comb
Die type Standard
Selectable punch pins (QSA) Yes
Bespoke dies No
Variable margin depth Yes (1)
Die changeover time 1 min
Machine dimensions L x W x H 360 x 490 x 250 mm
Machine weight 31 kg (2)
Machine packing dimensions L x W x H 620 x 480 x 345 mm
Machine weight with packing 34.5 kg (2)
Power requirement 230/250V / 50 Hz / 250W
115/200V / 60 Hz / 250W

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 2.0 - 2.5 mm.

(1) Dependent on the die type.
(2) Weight excluding the die.
