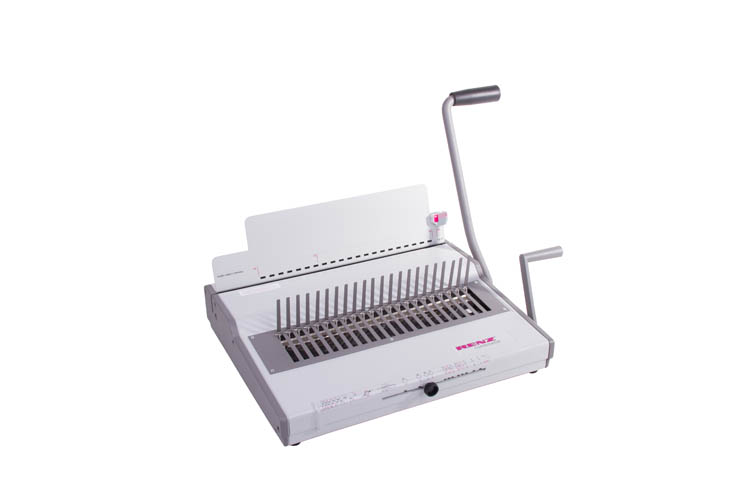

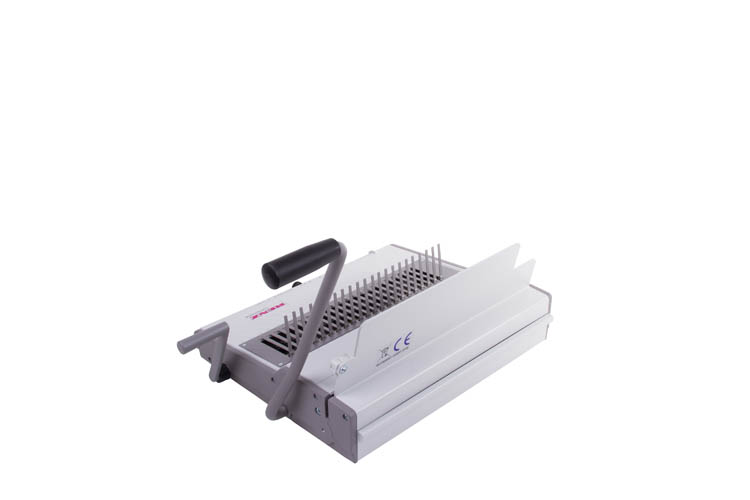

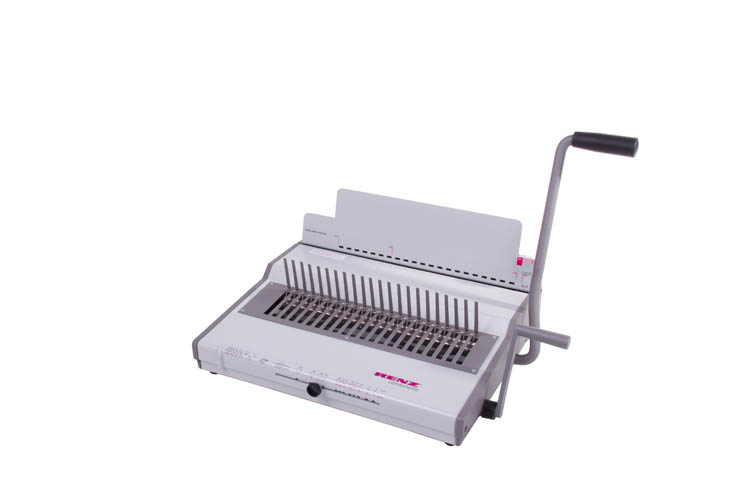

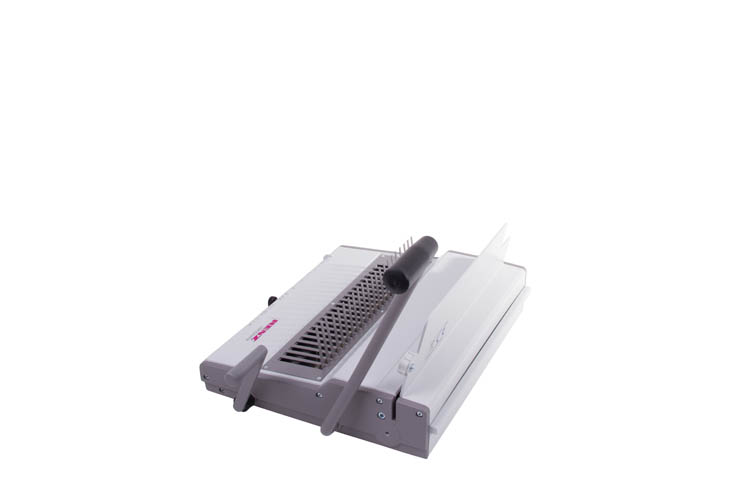

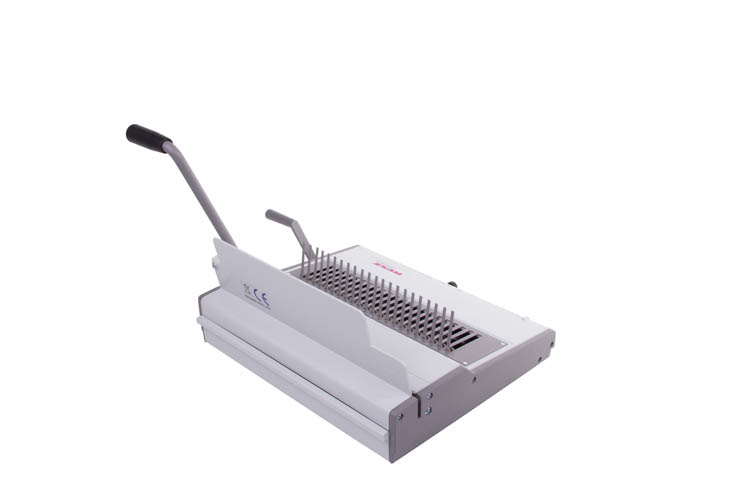

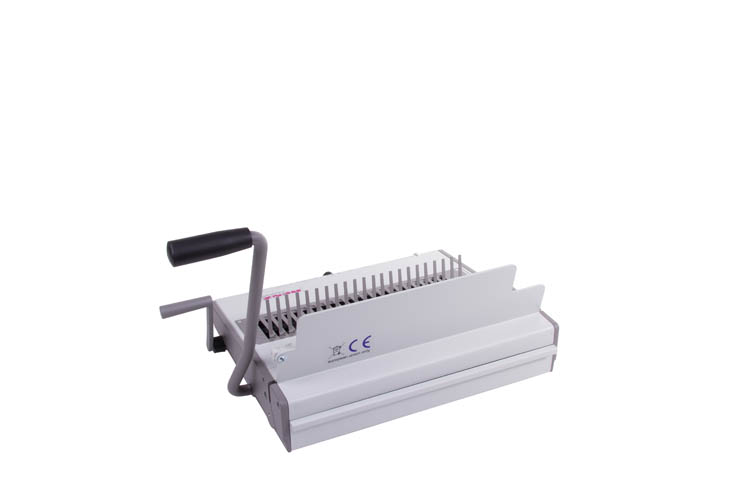

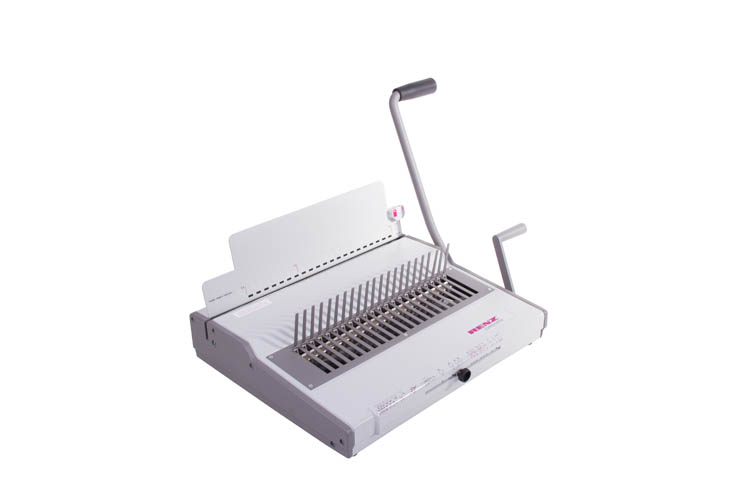

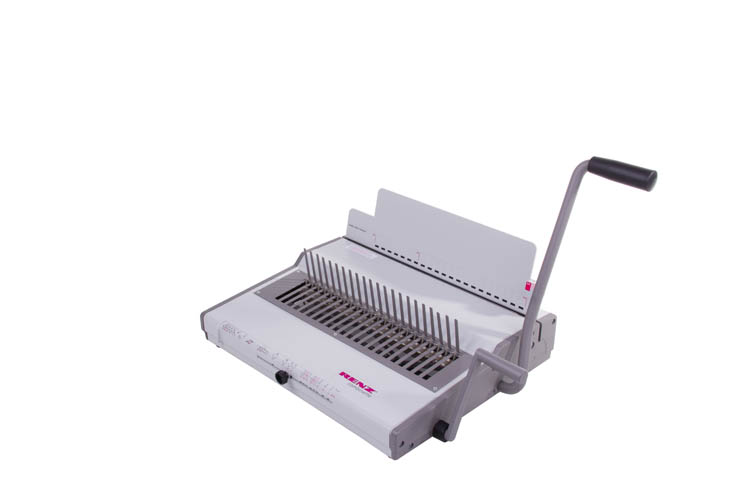

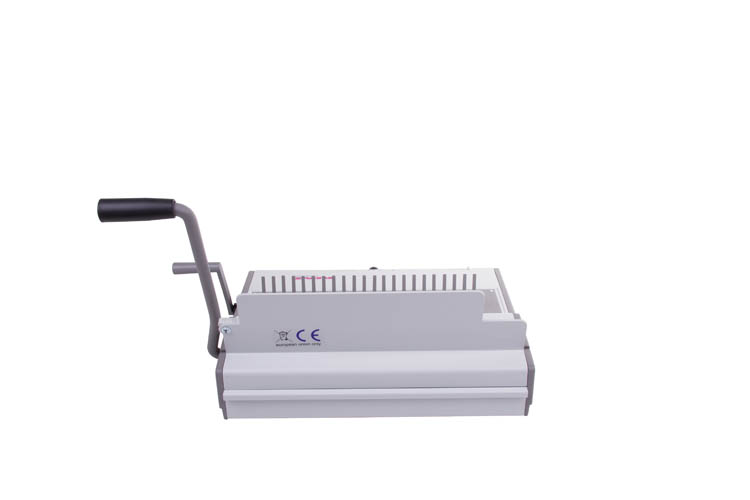

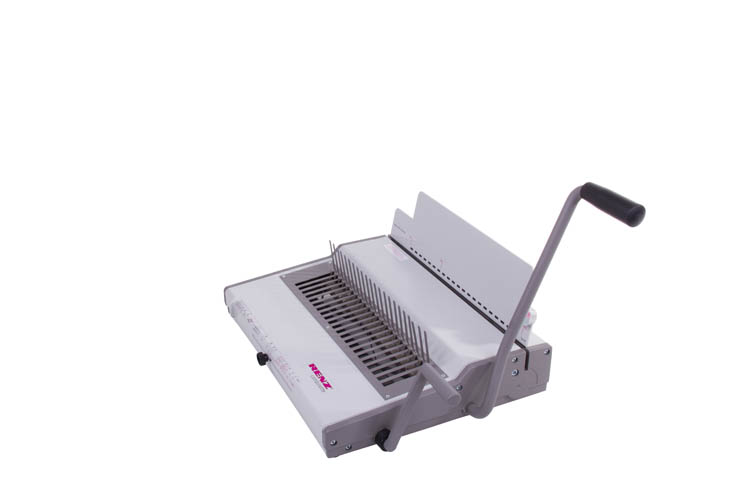

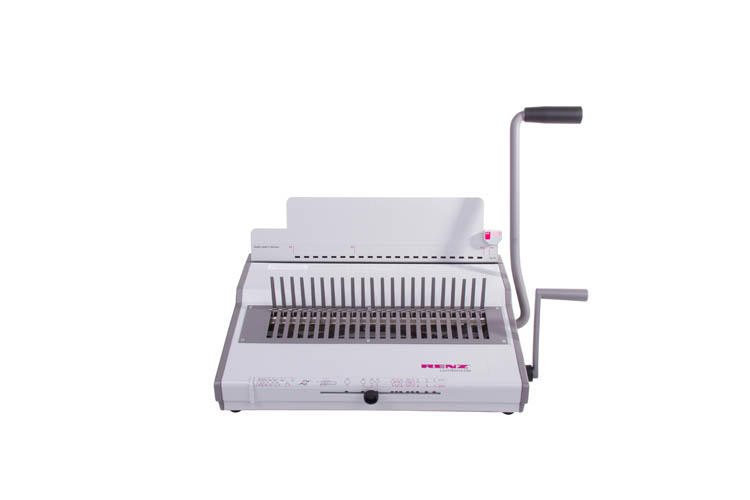

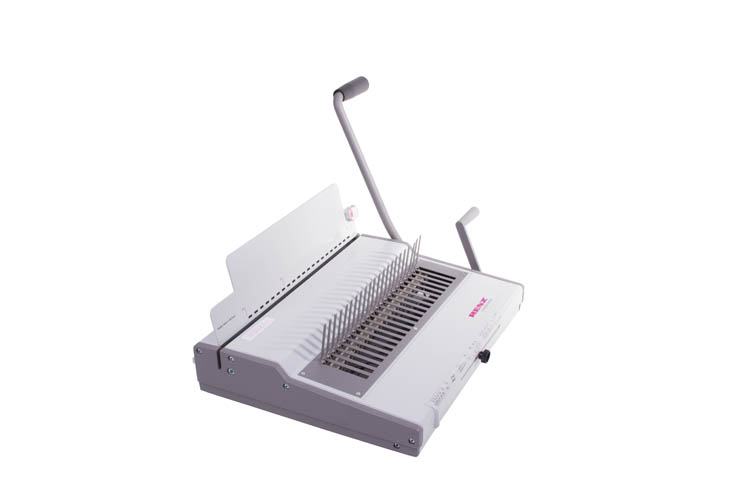

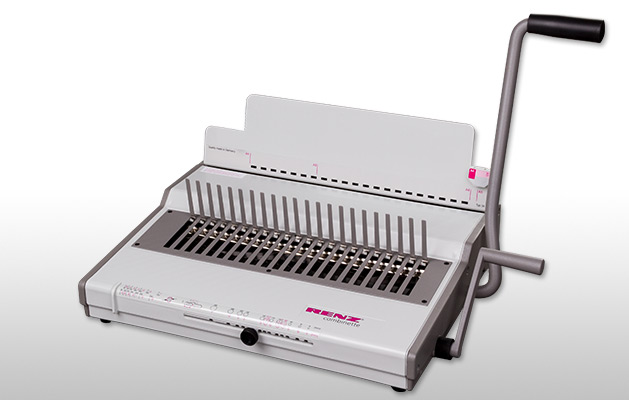

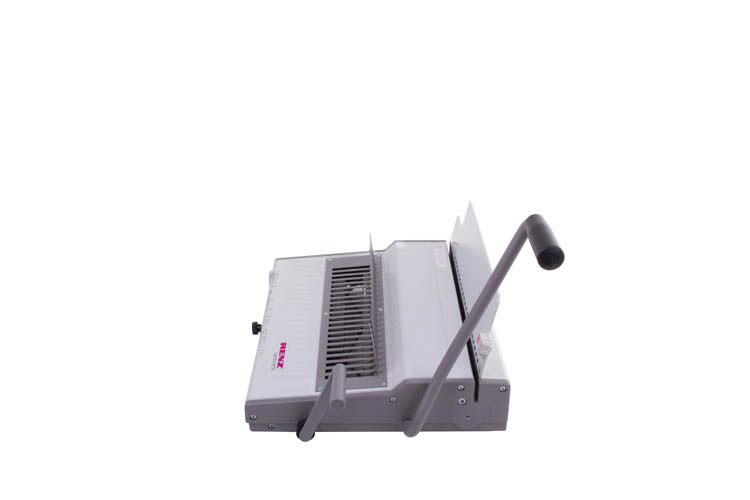

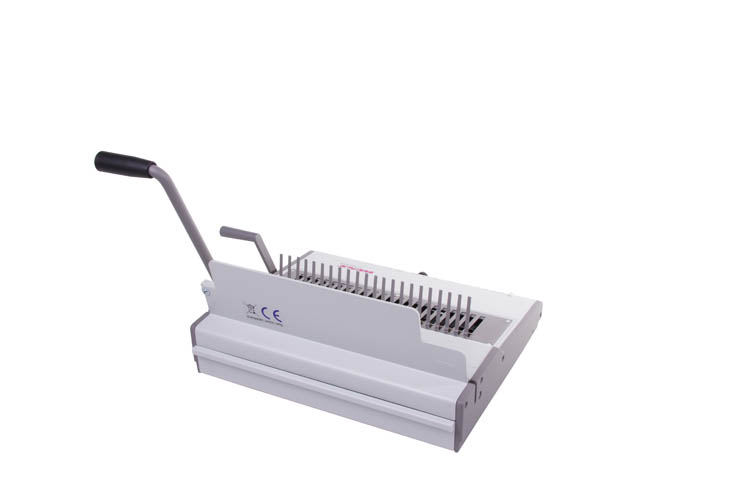

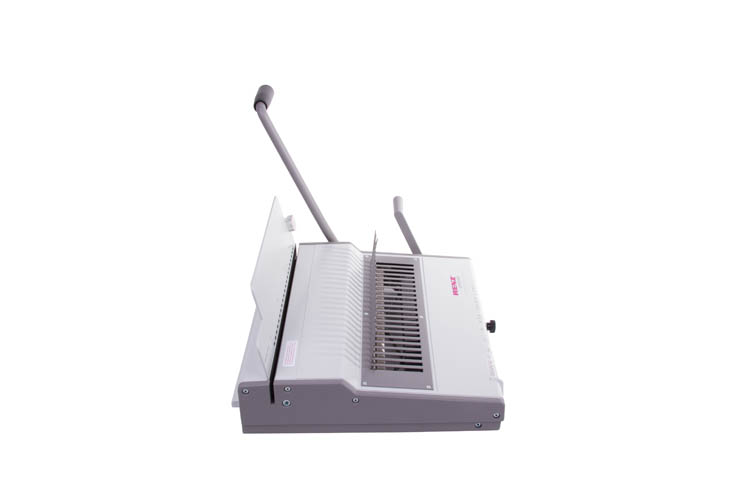

Desktop plastic comb punching and binding machine. For all types of comb book production. Designed to produce documents of all sizes in low and medium volumes quickly and easily. This entry-level office manual punching and binding machine is designed for regular use in a small to medium sized office.
- Binds up to 480 sheets
- Closure control guarantees easy comb closure
- Special hardened punch pins for long lasting life Staggered punching pins for better punching
- A5, A4 format changes
- Adjustable side lay for perfect punching registration
- Easy to empty sliding waste tray
- Measures the document or comb size
- Heavy duty construction & compact design
- Maximum:
Width
300 mm
Punch up to
2.5 mm
Bind up to
48 mm
- Output:
Max. punched sheets per hour
12,000
Max. bound products per hour
200
| EAN | 4029126112042 |
| Article no. | 26340000 |
| Punching capacity sheets per hr | 12,000 |
| Min. punching width | 10 mm |
| Max. punching width | 300 mm |
| Min. unpunched length | 50 mm |
| Max. unpunched length | 500 mm |
| Max. punching thickness | 2.5 mm |
| Punching operation | Manual |
| Punch dies available | Oblong 8 x 3 mm |
| Pitch | US - 21 ring |
| Selectable punch pins (QSA) | No |
| Variable margin depth | No |
| Binding thickness | 1 - 48 mm |
| Binding element Ø | 6 - 52 mm |
| Min. binding width | 10 mm |
| Max. binding width | 340 mm |
| Binding operation | Manual |
| No. of books output per hr | 200 |
| Machine dimensions L x W x H | 360 x 490 x 90 mm |
| Machine weight | 9.5 kg |
| Machine packing dimensions L x W x H | 620 x 480 x 345 mm |
| Machine weight with packing | 11.8 kg |
Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm. All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 1.5 - 2.0 mm.
