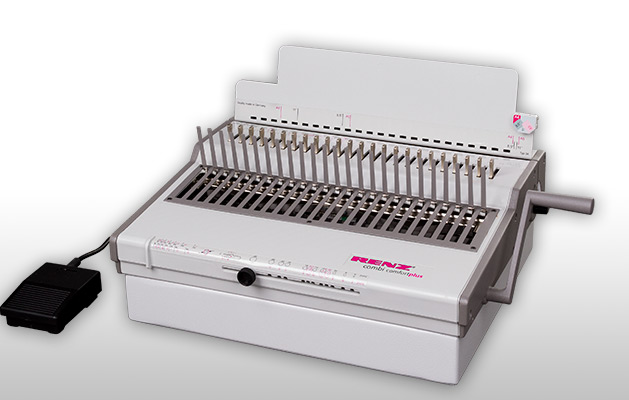

Desktop plastic comb punching and binding machine. For all types of comb book production. Designed to produce documents of all sizes in low and medium volumes quickly and easily. This electric punching and manual binding machine is designed for regular use in a small to medium sized office. It takes the manual labour out of punching.

  • Binds up to 480 sheets
  • Closure control guarantees easy comb closure
  • Gauge to alter margin for a stronger bind
  • Special hardened punch pins for long lasting life
  • Staggered punching pins for better punching
  • QSA (Quick Size Adjustment) for high flexibility of different paper formats: A5 and A4
  • Adjustable side lay for perfect punching registration
  • Easy to empty sliding waste tray
  • Measures the document or comb size
  • Heavy duty construction & compact design
Maximum:
Width

Width
340 mm

Punch up to

Punch up to
2.5 mm

Bind up to

Bind up to
48 mm

Output:
Max. punched sheets per hour

Max. punched sheets per hour
16,000

Max. bound products per hour

Max. bound products per hour
250

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 1.5 - 2.0 mm.

Vertical punching makes it simple and easy to punch correctly every time.

QSA (Quick Size Adjustment) technology allows the punching pins to be cancelled and the paper formats to be changed quickly and easily.

The depth gauge feature allows the operator to adjust the punched hole margin from 2 mm to 4,5 mm. This adds strength to the bound edge.

It binds volumes up to 480 sheets. The closure control guarantees quick and easy comb opening and closure.

EAN 4029126511340
Article no. 27340300
Punching capacity sheets per hr 16,000
Min. punching width 10 mm
Max. punching width 340 mm
Min. unpunched length 50 mm
Max. unpunched length 500 mm
Max. punching thickness 2.5 mm
Punching operation Electric
Punch dies available Oblong 8 x 3 mm
Pitch US
Selectable punch pins (QSA) Yes
Variable margin depth Yes
Binding thickness 1 - 48 mm
Binding element Ø 6 - 52 mm
Min. binding width 10 mm
Max. binding width 340 mm
Binding operation Manual
No. of books output per hr 250
Machine dimensions L x W x H 360 x 500 x 350 mm
Machine weight 23.5 kg
Machine packing dimensions L x W x H 620 x 480 x 345 mm
Machine weight with packing 26 kg
Power requirement 230/250 V/50 Hz/180 W
115/200 V/60 Hz/180 W

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm. All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 1.5 - 2.0 mm.
