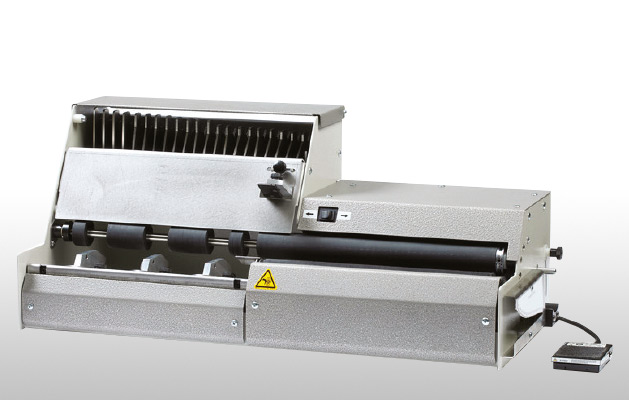

One machine with two modes of coil insertion that can handle coil diameters from 6 to 50 mm.

  • Comes complete with a set of 21 Spine Formers
  • Type 1 – for .2475” / 3:1 Pitch Type 2 – for 4:1 / 3:1 / 2.5:1 Pitch
  • Can bind books with coil diameters from 6 mm up to 50 mm
  • Vertical book placement can accommodate tabs or wider covers.
  • Offers two distinct modes of coil insertion based on book thickness.
  • Partners nicely with the CB - Cut & Bend
  • Foot Pedal Operated
Maximum:
Width

Width
30.5 mm (with Spine Formers) / 990 mm (with Rollers)

Bind up to

Bind up to
41 mm

Output:
Max. bound products per hour

Max. bound products per hour
350

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator.

Book shaping spine formers enable the operator to insert diameters up to 50 mm.

Dual spinning roller insertion for coil diameters up to 15 mm.

Pitch Type 1 – for .2475” / 3:1 Pitch
Type 2 – for 4:1 / 3:1 / 2.5:1 Pitch
Binding thickness 3.5 - 41.0 mm
Binding element Ø 6 - 50 mm
Min. binding width 152.5 mm (with Spine Formers)
25 mm (with Rollers)
Max. binding width 30.5 mm (with Spine Formers)
990 mm (with Rollers)
Binding operation Electric insert
No. of books output per hr 350
Time required for diameter change 5 min
Format change without diameter 2 min
Machine weight 24 kg
Machine packing dimensions L x W x H 710 x 320 x 305 mm
Power requirement 220 V Single Phase
110 V Single Phase

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator.
