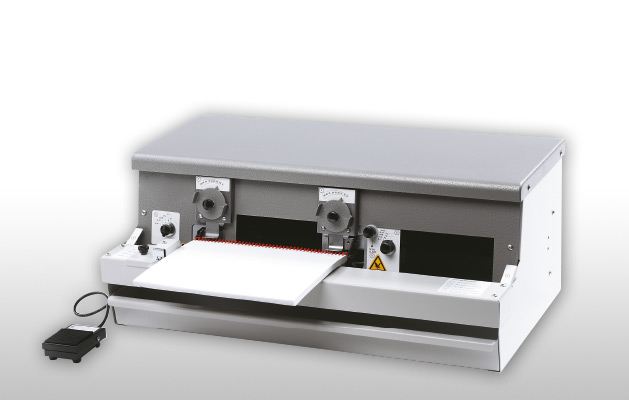

Dual Sided cut and bending unit for the full range of plastic coil diameters from 6 mm up to 50 mm - with the same bending heads!

  • No tools required for size changeovers.
  • Accommodates coil diameters from 6 mm to 50 mm without the need to change bending heads.
  • Min/Max binding edge 140 mm - 430 mm
  • Easy to follow decals guide the operator through setup.
  • Removable off-cut tray makes accumulation and disposal of off-cuts neat and tidy.
  • Available with electric or pneumatic actuation.
  • Foot pedal operated.
  • Simple dial adjustments enable you to setup, cut and bend coil diameters from 6 mm to 50 mm with the same bending heads!
  • Longer bend achieved as the coil diameter increases reducing the risk of coil unwinding from the larger punch holes.
  • Large top surface doubles as useable workspace.
  • Easily integrated with most coil insertion equipment.
Maximum:
Width

Width
430 mm

Cut & bend up to

Cut & bend up to
Ø 6 - 50 mm

Output:
Max. cut & bend products per hour

Max. cut & bend products per hour
350

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator.

Longer bend achieved as coil diameter increases.

Simple dial adjustments to change from a 6 mm to a 50 mm coil.

Pitch all common
Binding element Ø 6 - 50 mm
Min. binding width 140 mm
Max. binding width 430 mm
Binding operation Electric or pneumatic
No. of books output per hr 350
Time required for diameter change 1 min.
Format change without diameter 1 min.
Working width 430 mm
Machine dimensions L x W x H 710 x 410 x 305 mm
Machine weight 18 kg
Compressed air Pneumatic version - Compressed air requirements: 80 psi @ 1 cfm
Power requirement 220 V Single Phase (electric version)
110 V Single Phase (electric version)

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator.
