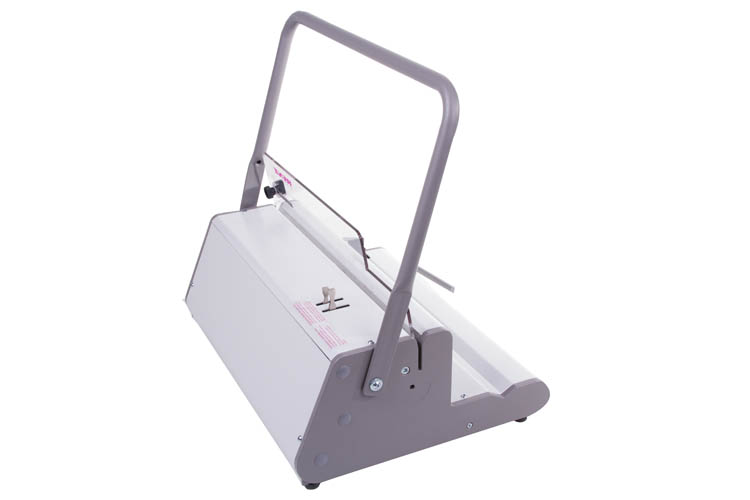

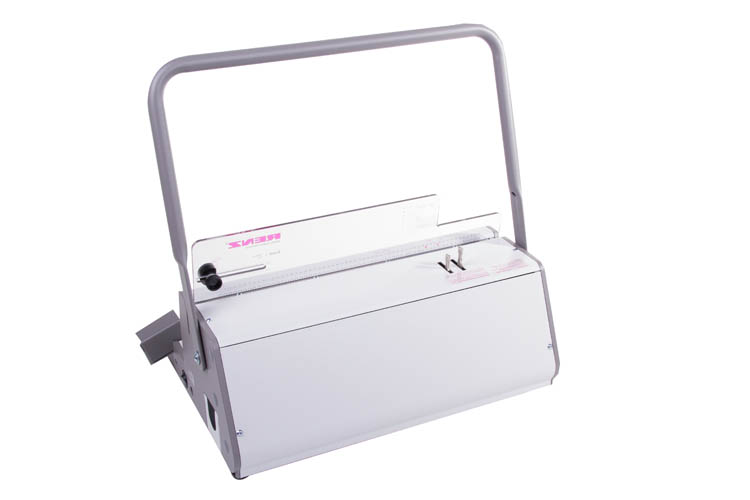

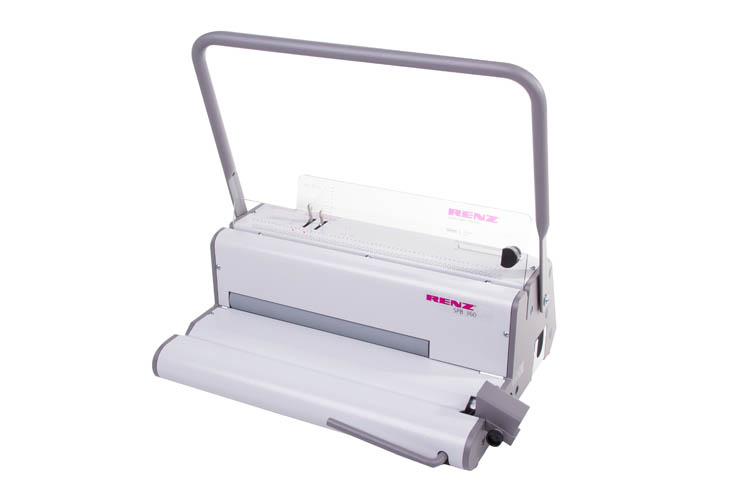

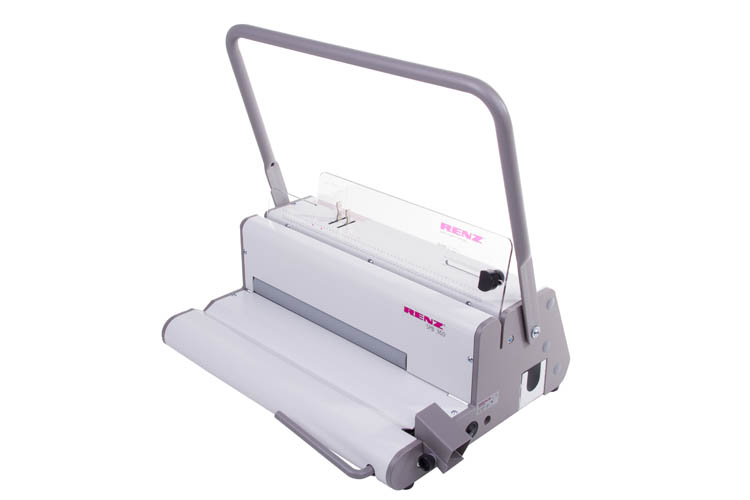

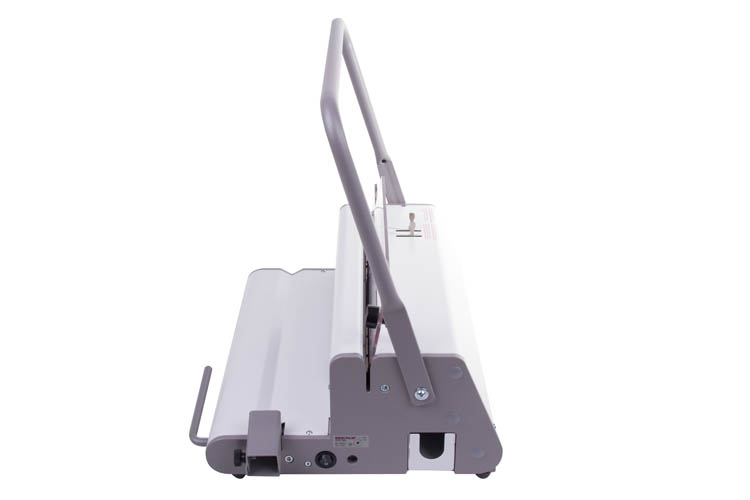

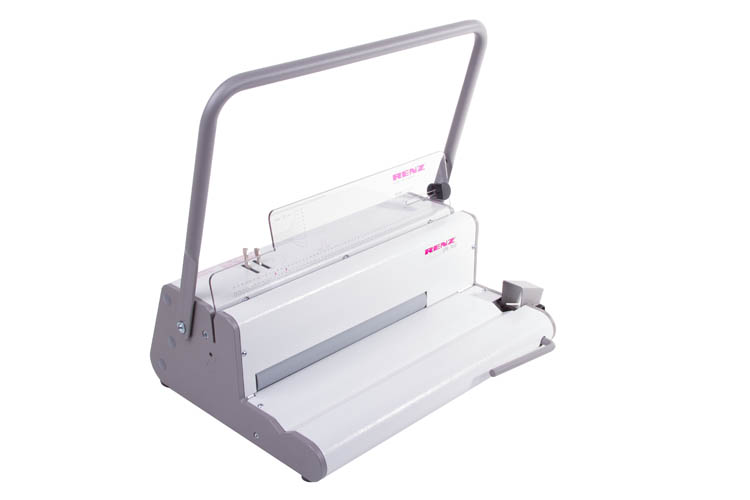

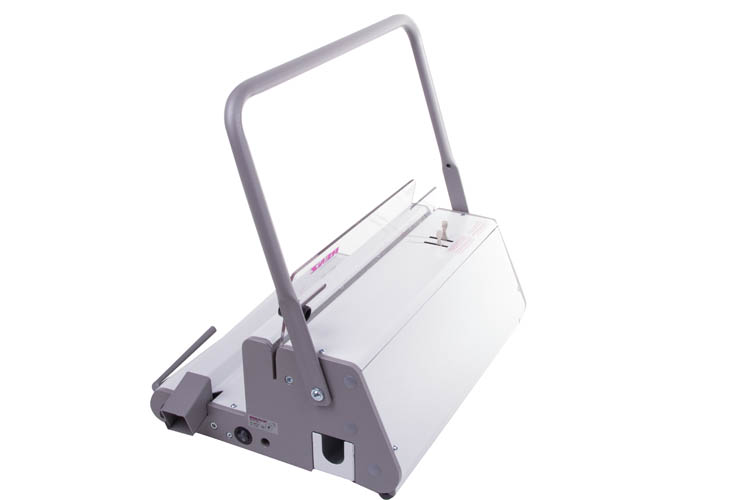

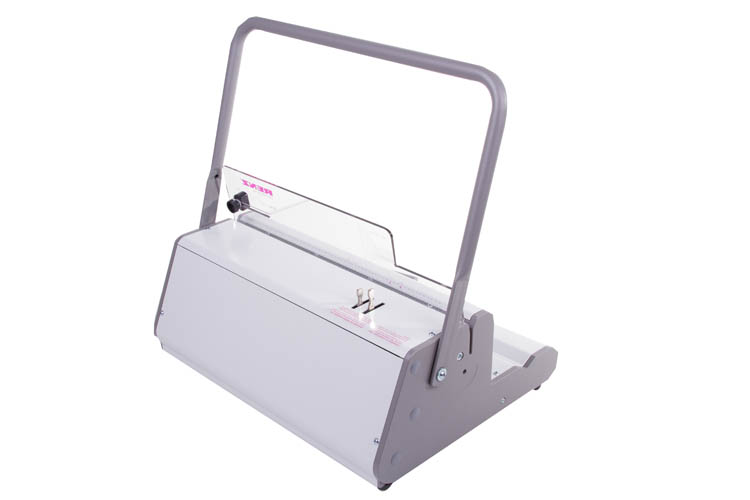

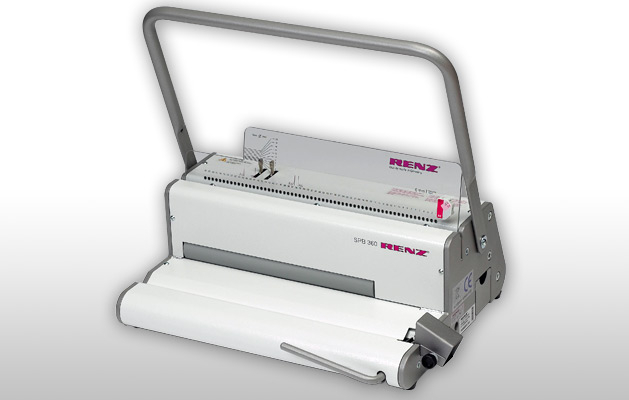

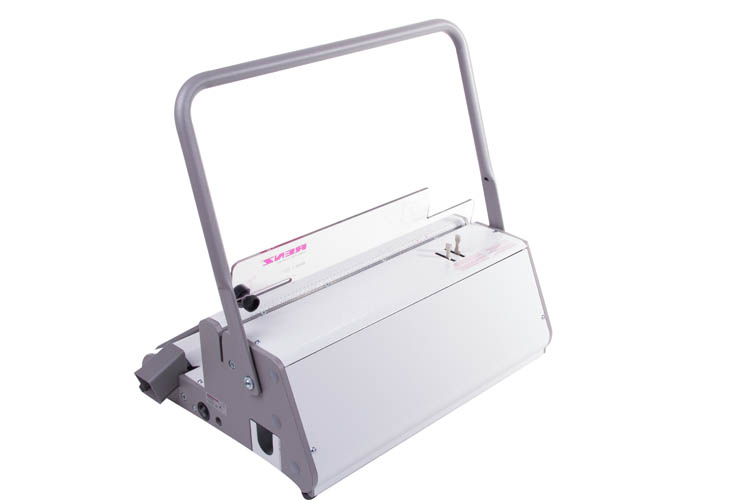

Desktop punching and inserting machine. Designed for low to medium volumes of PVC coil books production. This manual punching and electric inserting machine with manual crimping and cutting. Designed for regular use in a small to medium sized office.

  • Binds up to 160 sheets
  • QSA (Quick Size Adjustment) for high flexibility of different paper formats: A5 and A4
  • Adjustable side lay for perfect punching registration
  • Special hardened punch pins for long lasting life
  • Staggered punching pins for better punching
  • Easy to empty sliding waste tray
  • Unique electric roller for quick coil insertion
  • Clever crimper and cutter for turning coil ends
  • Measures the document or coil size
  • Heavy duty construction & compact design
Maximum:
Width

Width
360 mm

Punch up to

Punch up to
2.0mm

Bind up to

Bind up to
16 mm

Output:
Max. punched sheets per hour

Max. punched sheets per hour
8,000

Max. no. of bound products per hour

Max. no. of bound products per hour
50

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 1.5 - 2.0 mm.

Vertical punching makes it quick and easy to punch correctly every time.

QSA (Quick Size Adjustment) technology means that punching pins can be cancelled and paper formats can be changed quickly and easily.

The simple to use rubber roller threads the coil through the document quickly and effectively.

The integrated coil cutting and crimping unit gives the perfect finish to your document every time and crimps the plastic coil at a 45º angle.

Electric modular motor can upgrade a manual SPB 360 to an electric punch.

EAN 4029126503543
Article no. 260754000
Punching capacity sheets per hr 8,000
Min. punching width 10 mm
Max. punching width 360 mm
Min. unpunched length 50 mm
Max. unpunched length 270 mm
Max. punching thickness 2 mm
Punching operation Manual
Punch dies available Oval 5.0 x 4.0 mm
Pitch 0.2475”
Selectable punch pins (QSA) Yes
Variable margin depth No
Binding thickness 1 - 16 mm
Binding element Ø 6 - 20 mm
Min. binding width 10 mm
Max. binding width 360 mm
Binding operation Electric insert, manual crimp and cut
No. of books output per hr 50
Machine dimensions L x W x H 360 x 490 x 250 mm
Machine weight 19 kg
Machine packing dimensions L x W x H 620 x 480 x 345 mm
Machine weight with packing 23 kg
Power requirement 230/250 V / 50 Hz / 90 W
115/200 V / 60 Hz / 90 W

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 1.5 - 2.0 mm.
