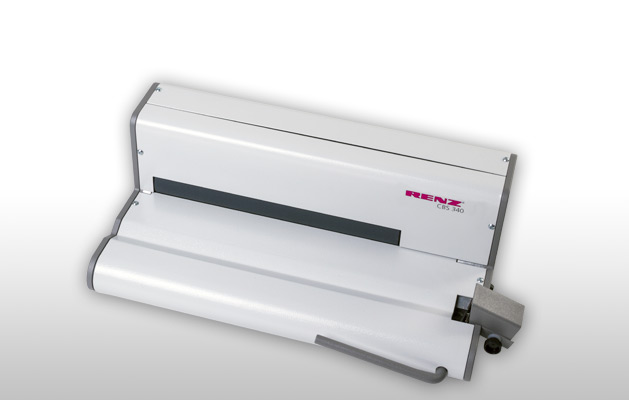

Standalone coil inserting and crimping machine for coil elements from ø 6 mm - 20 mm independent of pitch.

Maximum:
Width

Width
360 mm

Bind up to

Bind up to
16 mm

Output:
Max. bound products per hour

Max. bound products per hour
80

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator.

EAN 4029126320089
Article no. 38340011500
Pitch 6 mm / 0.2475”
Binding thickness 1 - 16 mm
Binding element Ø 6 - 20 mm
Min. binding width 10 mm
Max. binding width 340 mm
Binding operation Electric insert, manual crimp and cut
No. of books output per hr 80
Machine dimensions L x W x H 450 x 100 x 160 mm
Machine weight 9.5 kg
Machine packing dimensions L x W x H 620 x 480 x 345 mm
Power requirement 230/250 V / 50 Hz / 90 W
115/200 V / 60 Hz / 90 W

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator.
